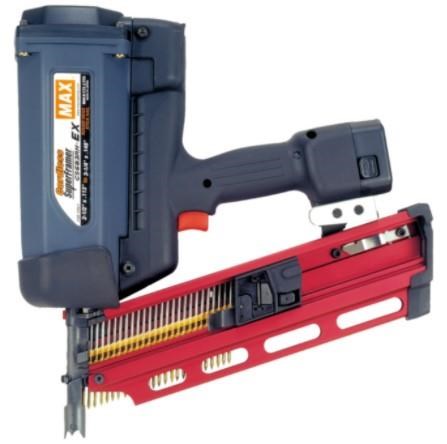

The MAX GS683RH/EX is a 21 degree cordless round head framing nailer. The GS683RH/EX can be used for framing joists, rafters, soffits, stairs, and decks. At 7.8lbs this gas powered nail gun can drive up to 3 1/4 x .131" plastic or paper collated nails. The GS683RH/EX is equipped with a reversible belt hook for easy hanging of the tool when it's not being used.
Applications: Framing, Sheathing, Decking, Subflooring, Furring
Interested in this item or want more information?
Hours:
Phone:
Email: sales@gamka.com
Can't find what you want? Give us a call and we can help you find it.
Details
- Dial adjustable depth control
- Durable aluminum magazine
- Open nose and magazine for easy jam clearance
- Low battery indicator
- Pointy teeth for easy toe nailing.
- Ni-MH battery
Specifications
|
WEIGHT
|
7.8 lbs |
|
DIMENSIONS
|
15"(H) x 4 3/8"(W) x 15"(L)
|
MAGAZINE CAPACITY | 32 |
|---|
DEPTH CONTROL | Yes |
|---|
JAM CLEARING | No |
|---|
BATTERY | Ni-MH 6.0V (1.5Ah) |
|---|
CHARGER | JC610M |
|---|
SHOTS PER CHARGE | Approx. 4,500 |
|---|
FUEL CELL | CFS-FCR |
|---|
SHOTS PER FUEL CELL | Approx. 1100 pins |
|---|
ACCESSORIES | Safety glasses, Battery, Charger, Carry case |
|---|
Fasteners
COLLATION TYPE | Plastic |
|---|
NAIL GUN ANGLE | 21 |
|---|
STRIP OR COIL | Strip |
|---|
COMPATIBLE FASTENER TYPES | Full round head stick nails |
|---|
MINIMUM FASTENER SIZE | 2" |
|---|
MAXIMUM FASTENER SIZE | 3-1/4" |
|---|
MINIMUM NAIL DIAMETER | 0.113 |
|---|
MAXIMUM NAIL DIAMETER | 0.148 |
|---|
Additional Information
Manufacturer: Max USA Corp.
For More Information on the 21 Degree Cordless Gas Framing Full Round Head Nailer up to 3-1/4",
[Click Here] to Link to Manufacturer Web Site
